Tool Room Items
Grinding Vice Screw Type
 'SATGURU' Grinding Vice - Screw Type is also a precision machine vice. Body & Jaw made of tool steel, hardened, tempered & precision ground.
All hardened & tempered to 52-56 HRC.
All Sides Parallelism & Squareness within +- 0.005mm.
Inspection certificate is furnished.
Accuracy 5-10 Micron. |
|
|
|
| |
|
Sine Vice Pin Type
 SATGURU' Precision Sine Vice - Screw Type is used to obtain precise angles by means of gauge blocks. Apart from its use on milling and grinding machine, this sine vice can also used as a reference for inspection.
1. All hardened & tempered to 52-56 HRC.
2. All Sides Parallelism & Squareness within +- 0.005mm.
3. Inspection certificate is furnished.
4. Accuracy 5-10 Micron.
|
|
|
|
| |
|
Steel V Block
 'SATGURU' Steel V-Blocks are made of tool steel, hardened, tempered & precision ground on all sides. Both sides 'V' with one clamp
1. Unbreakable Steel Clamp.
2. All Hardened & Tempered 52-56 HRC.
3. Parallelism & Squareness of all faces & ‘V’ within +- 0.005mm.
4. Inspection certificate is furnished. |
|
|
|
| |
|
Magnetic V-Blocks
 'SATGURU' Magnetic V-Blocks are precision ground V-Blocks with high power magnets. Accurately fitted magnet ensures easy movement of knob. Available in single as well as matched pairs. These V-blocks have main holding 'V' and bottom face fitted with hardened steel plates having hardness 52-56 HRC.
1. Parallelism & Squareness of all faces & ‘V’ within +- 0.005mm.
2. Most Suitable for inspection & tool room applications.
3. Inspection certificate is furnished.
|
|
|
|
|
|
C.I Angle plate
 'SATGURU' C.I. Angle Plate- Slotted is made out of high quality seasoned casting having precision ground outside faces & ends.
Accuracy in Parallelism & Squareness within +-0.01mm per 200mm length
Inspection certificate is furnished.
|
|
|
|
| |
|
Milling Vice Angle Type
|
 Milling vice - Angle Type (Three Way)
1. Angles can be set in 3 dimensions. Swivels 360 0 around base. The vise can be elevated through 90 0 from the horizontal to vertical. And also can be tited on its lower angle base up to 450 in both right and left..
2. Tilting of any angle all keep the work piece stady, smooth.
3. Particularly the clamping part of screw is strengthened by a bush made of gunmetal.
|
|
|
|
|
Sin Vice Screw Type
 SATGURU' Precision Sine Vice - Screw Type is used to obtain precise angles by means of gauge blocks. Apart from its use on milling and grinding machine, this sine vice can also used as a reference for inspection |
1. All hardened & tempered to 52-56 HRC..
2. All Sides Parallelism & Squareness within +- 0.005mm.
3. Inspection certificate is furnished.
4. Centre distance of rollers within +- 0.005mm..
5. Accuracy 5-10 Micron..
|
|
|
| |
|
Grinding Vice Pin type
 'SATGURU' Grinding Vice has body of one piece construction made of tool steel, hardened, tempered & precision ground. This vice can be used standing on its base, sides, end or top. Movable jaw is spring loaded for positive down hold & quick retreat. Due to downward pressure of jaw, job does not tilt while tightening in this vice. This vice can be used as a reference for inspection. |
1. All hardened & tempered to 52-56 HRC..
2. All Sides Parallelism & Squareness within +- 0.005mm.
3. Inspection certificate is furnished.
5. Accuracy 5-10 Micron..
|
|
|
| |
|

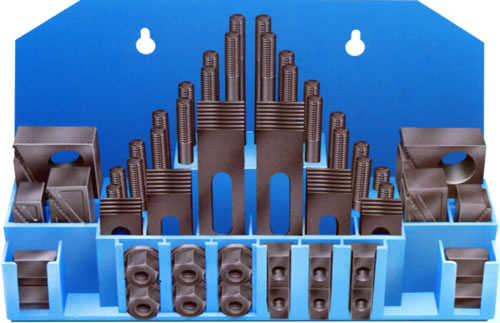

Clamping kit
00.jpg) |
SCK 14-12
SCK 16-12
SCK 18-12
SCK 18-16
SCK 20-16
SCK 22-20
SCK 28-24
|
|
|
|
|
| |
|
.jpg)
