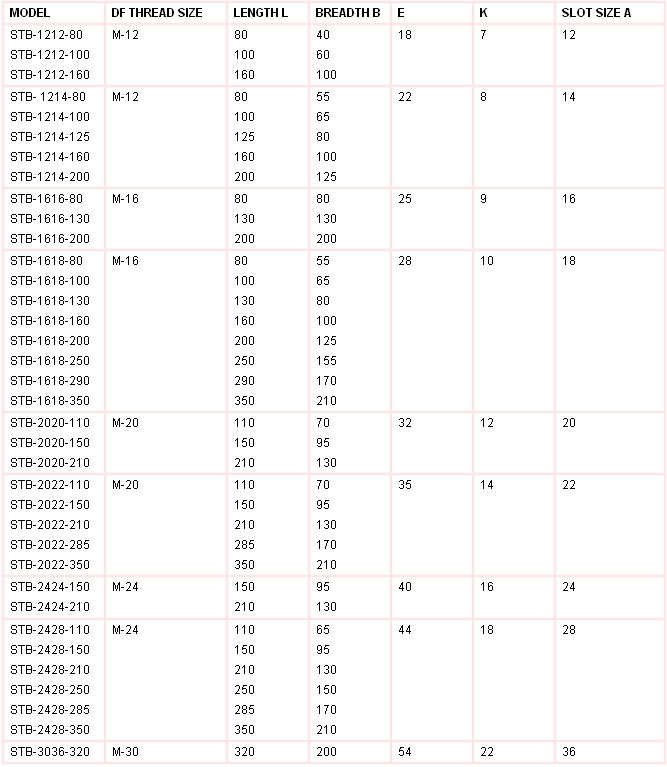

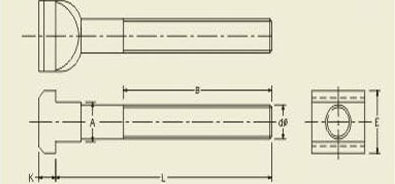

T-Bolt (Forged Head, Hardened & Tempered, High Tensile Steel, Black Finish)

(Forged Head, Hardened & Tempered, High Tensile Steel, Black Finish)

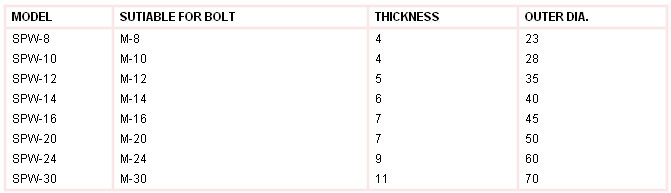

Washer

Machine Plain Washer (Case hardened, Black Finish)

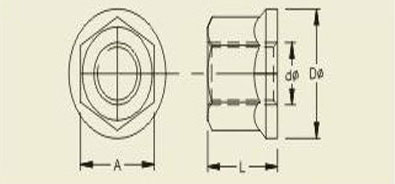

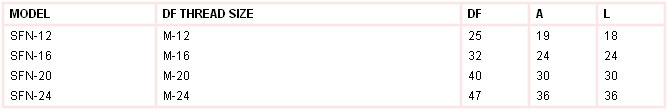

Flange Nut

These nuts have flanged face for larger face contact with the surface to be tightened on.

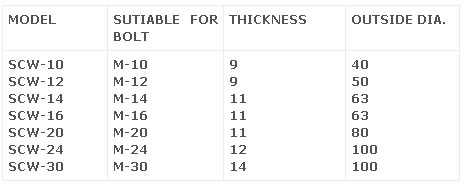

C - Washers

C-WASHER (Case Hardened, Black Finish) ..............................................................

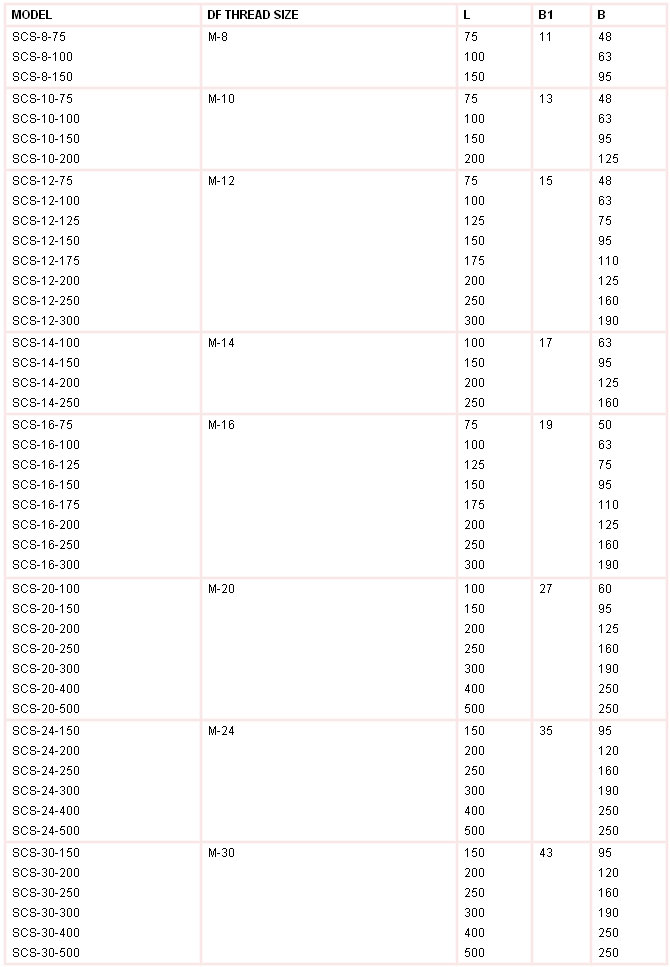

Stud
(Hardened & Tempered, sHigh Tensile Steel, Black Finish)

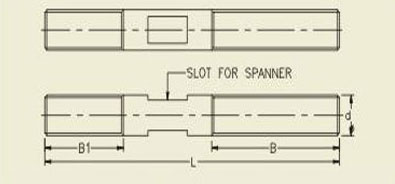

These Studs having threaded length of side B1 shown in figure below enables use on threaded platens of moulding machines or threaded beds of presses for longer insertion in the tapped holes. These studs also have a flattened middle portion for tightening & loosening with the help of an open ended spanner.

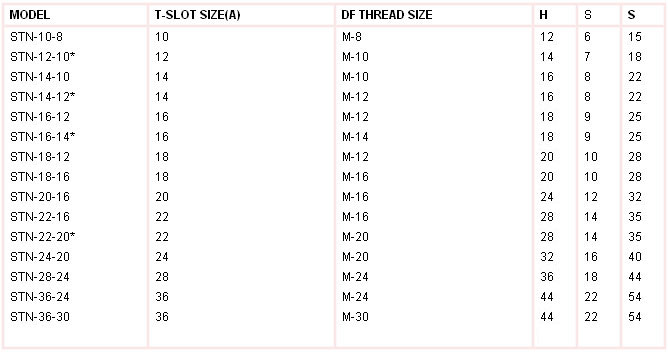

T-Nut

T-NUT (Hardened & Tempered, Black Finish)

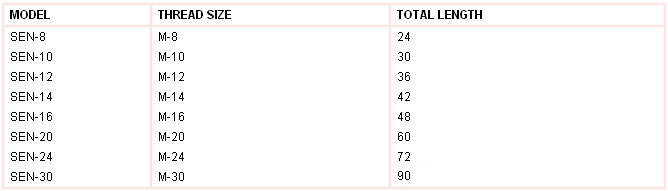

Extension Nut

EXTENSION NUT (Hardened & Tempered, Black Finish).
