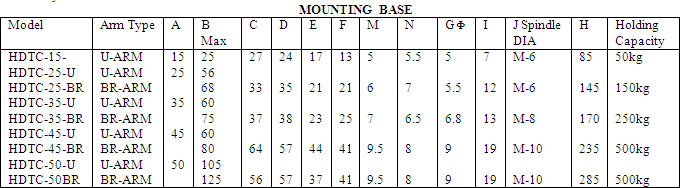

Low height design of these hold down toggle clamps requires less overhead clearance as the handle remains in horizontal position while clamping.
Standard Accessories provided with Clamp: Standard Hex, Head Clamping Spindle assembly is provided as standard accessory with all above clamps. U-Arm models are provided with 2 nos. U-Flanged Washers also along with clamping spindle assembly and BR-arm models are provided with bolt retainers along with clamping spindle assembly..

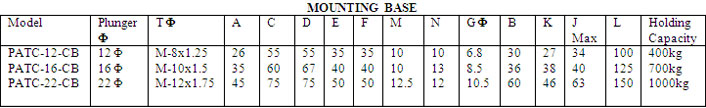

'SATGURU' Push/Pull Action Toggle Clamp - Centre Base has its base at the centre and the bigger two sizes have more centre height than the front base model to accommodate larger work pieces. Width of the mounting base is also less in this case which makes this type of push action clamp more compact. Other Features of this clamp are same as in case of front base model. Standard Accessories provided with Clamp : Standard Hex, Head Clamping Spindle assembly is provided as standard accessory.

'SATGURU' Push/Pull Action Toggle Clamps have a straight line action as the plunger moves in straight line forward & backward with easy to operate handle. The plunger moves forward and locks as the handle is moved forward and plunger also locks in retracted position when handle is moved backward. Hence these clamps can be used as push as well as pull action clamps. Hardened & ground plunger moves in precision machined bore.

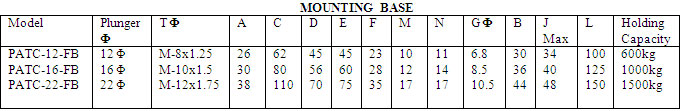

This Model with front base is most popular because of its rigidity due to mounting base just under the load bearing surface of plunger movement.
Standard Accessories provided with Clamp: Standard Hex, Head Clamping Spindle assembly is provided as standard accessory.

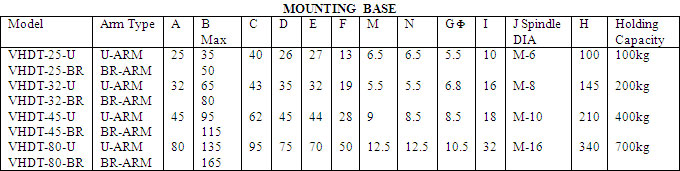

These toggle clamps have a flanged base with holes for mounting on the fixture plate. Handle remains in vertical position while clamping. Available in two types of clamping arms as shown below:
U-Arm: - This is the most widely used type which permits to locate the clamping spindle anywhere along the length of the arm.
BR- Arm: - This type of Arm has s Strip Arm onto which the bolt retainer can be welded by the user at any desire angle. Bolt retainer is supplied loose with this model.
Standard Accessories provided with Clamp: Standard Hex, Head Clamping, Spindle assembly is provided as standard accessory with all above clamps. U-Arm models are provided with 2 nos. U-Flanged Washers also along with clamping spindle assembly and BR-arm models are provided with bolt retainers along with clamping spindle assembly.
