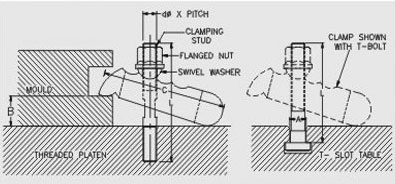

'SATGURU' Mould Clamp is designed especially for low height applications only such as clamping of moulds on plastic injection moulding machines & pressure die casting machines. The Compact front portion of the clamp enables it to penetrate into the limited clamping area of the mould & clamp it. The positioning of forged swivel washer on required curved groove enables the operator to set the center distance between the clamping portion & the clamping bolt as per the nearest tapped hole available on platen (Where there are no T-Slots). No supports are required at the rear of the clamp as the rear portion rests on the platen & front holds the mould. Flanged nut is tightened on the swivel washer which takes care of the positioning of clamp body. These Clamps are equally useful on pressure die casting machines, hydraulic presses & power presses where low height clamping is done.
Clamps are supplied complete with swivel washer, flanged nut & clamping stud or T-Bolt as show in tables below.

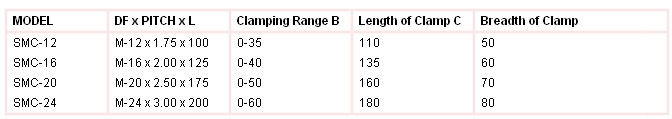

MOULD CLAMP -- WITH CLAMPING STUD .

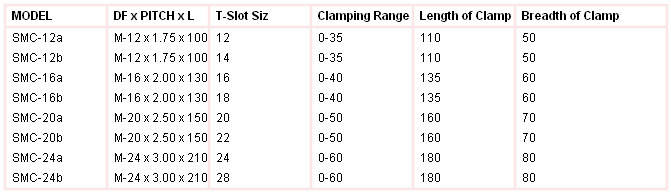

MOULD CLAMP - WITH T-BOLT .
Universal Clamp

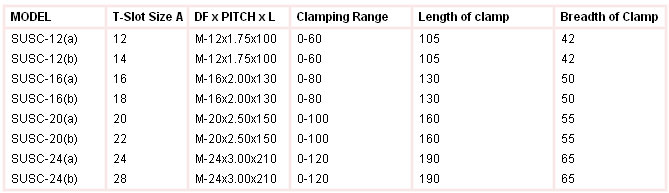

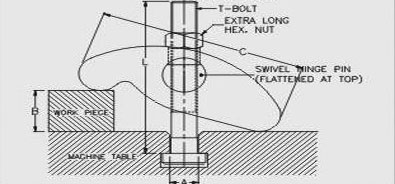

SATGURU' Universal strap clamp is very useful for job clamping on 'T' slot table of Drilling, Milling, Shaping, Boring, Power Press & other machine tools. No supports are required at the rear of the clamp since the body of the clamp is self-positioning as the rear part rests on the table and front holds the job. The body positions itself with the help of swivel hinge pin according to the thickness of the work piece, the T-Bolt remaining in vertical position and the nut is tightened on the flattened portion of swivel hinge pin.
Clamp is supplied complete with hardened T-Bolt & special nut.
Tapped End Clamp

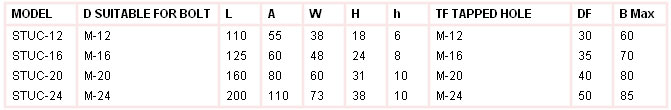

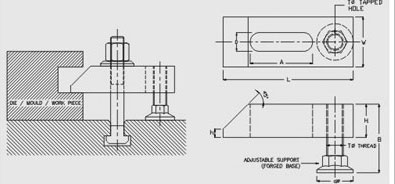

(Hardened & Tempered, Black Finish) 'SATGURU' Tapped End Clamps are straps having special threaded adjustable support at the rear which can be adjusted to required height. Most useful clamp for plastic injection moulding or pressure die casting machines where mould/die is clamped in vertical position and these clamps with screwed in adjustable support are convenient to the operator as other loose supports tend to fall down while setting. Hardened adjustable support with large diameter forged base gives rigid clamping support and ensures machine bed safety. Extra thick body of the clamp accommodates more number of threads for rigidity of screwed support. Supplied with adjustable support only. T-Bolt or Stud with Nut, Washer etc to be ordered separately.
'SATGURU' Mould Clamp is designed especially for low height applications only such as clamping of moulds on plastic injection moulding machines & pressure die casting machines. The Compact front portion of the clamp enables it to penetrate into the limited clamping area of the mould & clamp it. The positioning of forged swivel washer on required curved groove enables the operator to set the center distance between the clamping portion & the clamping bolt as per the nearest tapped hole available on platen (Where there are no T-Slots). No supports are required at the rear of the clamp as the rear portion rests on the platen & front holds the mould. Flanged nut is tightened on the swivel washer which takes care of the positioning of clamp body. These Clamps are equally useful on pressure die casting machines, hydraulic presses & power presses where low height clamping is done.
SATGURU' Universal strap clamp is very useful for job clamping on 'T' slot table of Drilling, Milling, Shaping, Boring, Power Press & other machine tools. No supports are required at the rear of the clamp since the body of the clamp is self-positioning as the rear part rests on the table and front holds the job. The body positions itself with the help of swivel hinge pin according to the thickness of the work piece, the T-Bolt remaining in vertical position and the nut is tightened on the flattened portion of swivel hinge pin.
Clamp is supplied complete with hardened T-Bolt & special nut.
(Hardened & Tempered, Black Finish) 'SATGURU' Tapped End Clamps are straps having special threaded adjustable support at the rear which can be adjusted to required height. Most useful clamp for plastic injection moulding or pressure die casting machines where mould/die is clamped in vertical position and these clamps with screwed in adjustable support are convenient to the operator as other loose supports tend to fall down while setting. Hardened adjustable support with large diameter forged base gives rigid clamping support and ensures machine bed safety. Extra thick body of the clamp accommodates more number of threads for rigidity of screwed support. Supplied with adjustable support only. T-Bolt or Stud with Nut, Washer etc to be ordered separately.

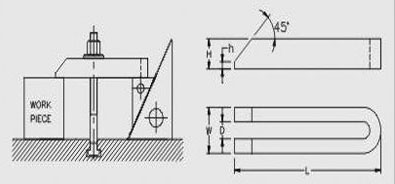

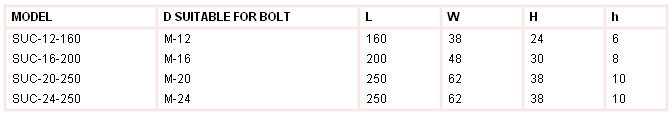

U-Clamp (Hardened & Tempered, Black Finish) .
