Strap Clamps (Hardened & Tempered, Black Finish)

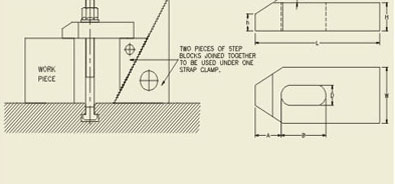

_img.jpg) STRAP CLAMP (Hardened & Tempered, Black Finish)
 |
|
|
|
|
| |
Step Strap Clamp

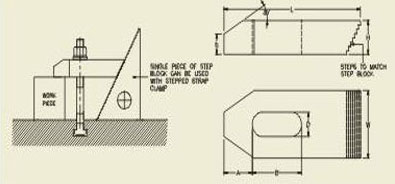

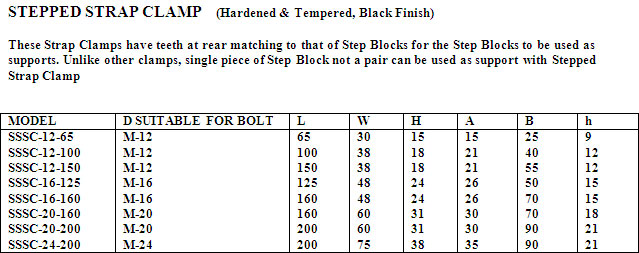

 STEPPED STRAP CLAMP (Hardened & Tempered, Black Finish)
These Strap Clamps have teeth at rear matching to that of Step Blocks for the Step Blocks to be used as supports. Unlike other clamps, single piece of Step Block not a pair can be used as support with Stepped Strap Clamp
|
|
|
|
|
|
| |
Step Block (Hardened & Tempered, Black Finish)

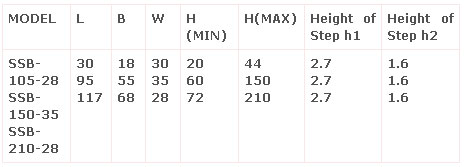

_img.jpg) STEP BLOCKS (Hardened & Tempered, Black Finish)
'SATGURU' Step Blocks are used as adjustable supporting Blocks at the rear of the clamp while clamping the work piece. Different heights can be achieved by using combination of two different size of Step Blocks. Available in pairs (Pair consists of 2 identical Step Blocks)
Combination of two Step Blocks of same or different sizes is kept as support under one Strap Clamp. But in case of use of Step Blocks with Stepped Strap Clamp, only one Step Block of suitable size is kept as support under one stepped strap clamp.
_1_img.jpg)
|
|
| .................................................................... |
 |

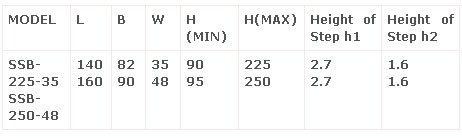

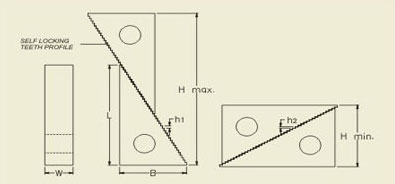

STEP BLOCK - HEAVY DUTY
'SATGURU' Step Block-Heavy Duty is different than step blocks above in width only. More width enables use on bigger T-slots and also with bigger sizes of stepped strap clamps.
| ..................................................................... |
. |
|
|
|
|
|
|
|
| |

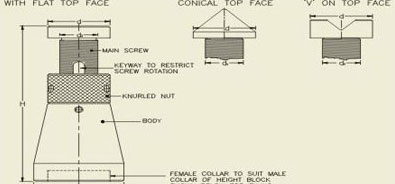

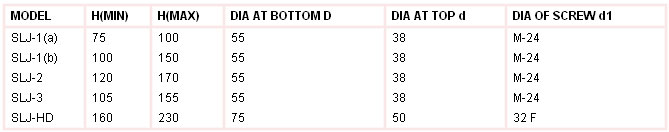

Leveling Jack
 'SATGURU' Levelling Jack can used as an adjustable support block for clamps and as a stopper or leveling block in fixtures or machines, as well as for levelling surface plates or other heavy duty work pieces. Its unique design does not allow the levelling screw to rotate while adjustment hence makes it suitable for fine level adjustment. It also has a heavier version of levelling jack with a heavy body and Levelling Screw & Knurled out. This Jack is specially designed for heavy castings & machines..
|
|
 |
|
|
|
| |
Steel Parallels
 'SATGURU' Steel Parallels are used as precision packing support under jobs or fixtures. Made from tool steel, hardened, tempered & precision ground in matched pairs. Matched pairs are marked with identical serial numbers. All sides are chamfered. Overall sizes are nominal.
|
Hardened & Tempered 52-56 HRC. ,Parallelism within 0.005mm up to 200mm length., Inspection certificate is furnished.
|
| .......................................................................... |
 |
|
|
|
|
| |

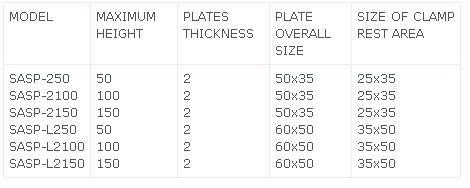

Adjustable Support Plates

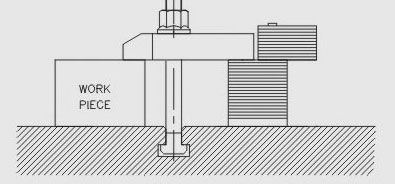

 'SATGURU' Adjustable Support Plates are used as adjustable supports at the rear of the clamp. It comprises of number of plates each 2mm thick hinged together. Desired height is achieved very easily by swinging aside the required number of plates and using the remaining as support block. Different models of support plates can be stacked on each other to achieve extra height.
|
|
| ............................................................... |
 |
|
|
|
|
| |
